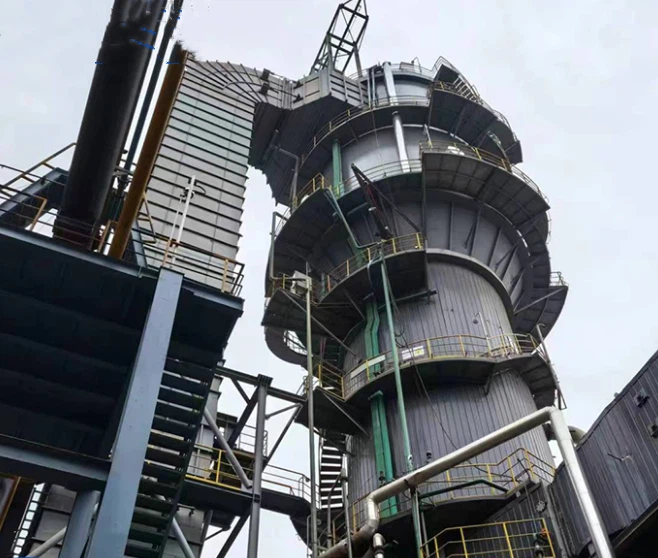

An industrial cyclone separator is a dust collection device that utilizes centrifugal force to separate particulate matter from gas streams. Characterized by simple construction, no moving parts, easy maintenance, and low investment cost, it operates by directing dust-laden gas tangentially into the separator, where it rotates along the inner wall. Under centrifugal force, dust particles are thrown against the wall and fall into the hopper, while purified gas exits through the outlet.
Product Parameters
|
Item |
XLPA/B Type |
CLK Diffusion Type |
TXP Ceramic Type |
|
Collection Efficiency |
High for particles >3μm |
Stable efficiency |
≥95% (body resistance <900Pa) |
|
Applicable Particles |
Dry, non-fibrous |
Dry, non-fibrous granular |
Boiler flue gas, industrial dust |
|
Structural Features |
Spiral tangential top cover |
Inverted cone body + reflector cone |
Multi-tube ceramic cyclone array |
|
Pressure Loss |
Moderate |
Resistance coefficient 7.5-9 |
<900Pa |
|
Wear Resistance |
- |
Cast iron/ceramic (thickness >6mm) |
Ceramic material, excellent wear resistance |
|
Operating Temperature |
Conventional |
Conventional |
High temperature resistant |
Main Applications
Our industrial cyclone separator equipment is ideally suited for:
Metallurgical Industry
Dust control in foundries, sandblasting, and smelting processes
Building Materials Industry
Dust recovery in cement and refractory material production
Power Industry
Flue gas dust removal from industrial and thermal power station boilers
Chemical Industry
Dust capture and recovery during chemical production processes
Mining Industry
Dust control in mining and mineral processing operations
Grain Industry
Dust recovery in grain processing facilities
FAQ
Q: What are the advantages of an industrial cyclone separator compared to a baghouse filter?
A: An industrial cyclone separator offers simple construction with no moving parts, lower investment cost, easy maintenance, and low operating expenses. It can handle high-temperature dust-laden gases (up to 1000°C) and imposes no special requirements on dust properties. It is suitable for coarse and medium-level dust purification and material recovery.
Q: How can the collection efficiency of a cyclone separator be improved?
A: Efficiency can be improved by: 1) reducing the cyclone diameter (using multi-tube parallel arrangements); 2) increasing inlet gas velocity; 3) adopting diffusion-type designs (such as the CLK type) to prevent re-entrainment; 4) selecting wear-resistant materials to extend service life. Note that increasing inlet velocity will increase pressure loss.
